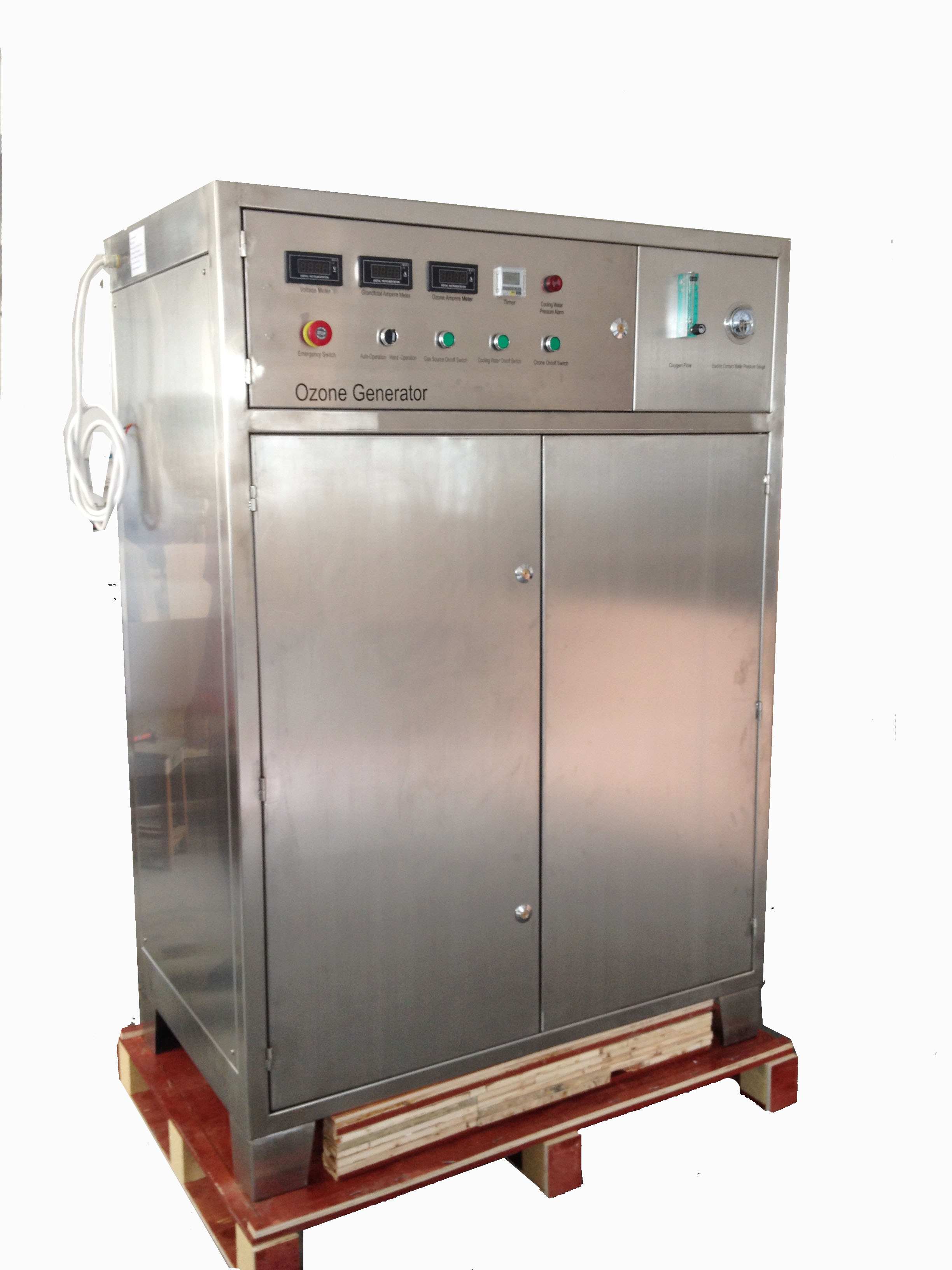

LF-OXF200G Ozone generator 100~145MG/L /Ozone water purifier /Water treatment Ozone generator

Specifications

1.    Product name:   LF-OXF200G ozone generator 100MG ~ 145MG/L /ozone water purifier /ozone generator water treatment

2.    Model: LF-OXF200G;

3.    Ozone output: 200Grams/H;

4.    Ozone concentration: 100MG ~ 145MG/L;

5.    Gas source: Oxygen concentrator;

6.    Oxygen concentration: >90%

7.    Oxygen flow: 0-40 LPM;

8.    Free accessory: Teflon hose (10 Meters); 1 x venturi (1.5”);

9.    Cooling solution: Both air & Water cooling;

10.  Ozone module quantity per C-200 unit: 4 sets

11.  Ozone output: 60Gram/Hour Per tube (module)

12.  Cooling water temperature: <30℃

13.  Cooling water flow: 5~10L/m

14.  Cooling water pressure: less then 3 bars;

15.  Material of Cabinet: 304 S. Steel;

16.  S. Steel cabinet thickness: 1.5MM;

17.  C-200 net weight: 300KGS;

18.  Gross weight: 345KGS;

19.  C-200 units dimension: 1200mm(L)x 720mm(W)×1720(H)mm;

20.  Packages dimension: 1260(L) x 860(W) ×1850(H)

21.  Power consumption≤ 5.5KW

More professional control system: There are some control systems on the control panels:

1.    Voltage Meter;

2.    Grand Total Ampere Meter

3.    Ozone Ampere Meter

4.    Timer

5.    Cooling Water Pressure Alarm

6.    Emergency Switch;

7.    Auto-Operation;

8.    Hand-Operation

9.    Gas Source On/Off Switch

10.  Cooling Water On/Off Switch

11.  Ozone On/Off Switch

Main function of ozone:

1.  Food purification; To decompose the residual chemical fertilizer, pesticides and other toxic substances in fruits, vegetables and foodstuff; Remove the antibiotics, chemical additives, hormones and other harmful substances in the meat, eggs, kill Halophilic bacteria in the seafood;

2.  Drinking water purification: The tap water after ozone treating is a kind of high quality drinking water; Injecting ozone gas in every 1 liter tap water for 2 minutes, can to remove the residual chlorine, taste and heavy metals in water, and up to the level of sterilization and disinfection. To prevent the formation of trichloromethane (CHCl3), increase the oxygen content in the water to be the ideal of pure drinking water.

3.  Disinfection and Sterilization for dining utensils; Put the washed dining utensils into the ozonated water for 20 minutes to remove residual detergent. To kill Bacteria and virus to instead of the normal disinfection cabinet; avoiding the utensils of infectious diseases, also be used for disinfection for clothing, towels, rags and socks.

4. Air purification: Hang the ozone exhaust pipe 1.7 meters above, keeping the ozone emission 20--30 minutes to remove indoor smoke and dust, decoration odour. Increase the oxygen content in the air, clean air. Let you enjoy the fresh at home like the air after the rain in forest (applied family, office, conference rooms, entertainment and others public place for smoke or dust or taste removal and disinfection);

5. Fruits and vegetables fresh keeping, mildew proof: inject the ozone gas in the bag of fruits or vegetables for 2 hours, can extand the freshness date 7 days. And also cab be used for mildew proof of vegetable cellar, fruit and vegetable transportation.

At present in the world, pure water, natural water (mountain spring water, mineral water, groundwater is filtered and other steps), has been widely adopted ozone gas for disinfection. In tap water purification, the international standard for 0.4mg/L dissolve
