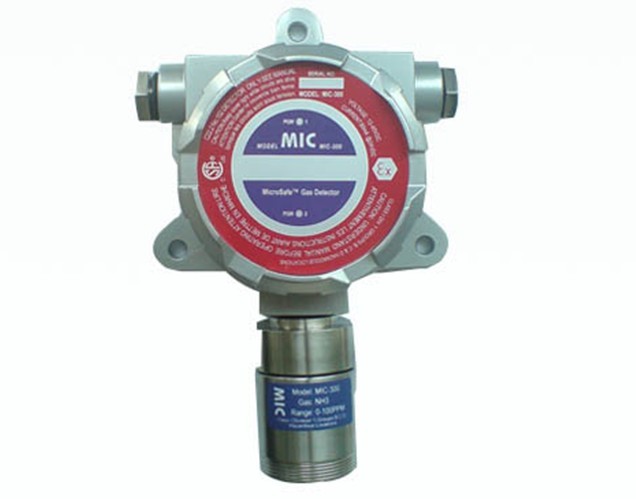

Model: LF-MC300

Application: To test the ozone concentration in the air;

Working theory: Electrochemistry

Detection methods: diffusion, ducted

Installation: Wall Mounted

Measuring Scope: 0-100ppm (5ppm, 10ppm, 20ppm, 50ppm optional fixed range)

Resolution: 0.01ppm (0-100ppm);

Accuracy: ± 3%

Dimensions: 125*106*153mm

Weight: 1.8 KG

Working temperature: -20℃ ~ 50 ℃

Humidity: 10 ~ 95% RH non-condensing

Working Voltage: 24VDC (12 ~ 45VDC)

Working Current: 3.3mA (minimum), 23mA (max)

Explosion class: Ex d IIC T6

Analog signal output: two or three-wire 4-20mA linear output

3.6mA calibration of the output and fault output 22.8 mA

Digital Output: Standard RS232 signal output, to communicate with the computer through the Moden and communications software
